With the TPE backing material providing a flexible panel, these efficient Solar Panels are built to last, ensuring optimal output and power supply while offering exceptional protection against heat damage.

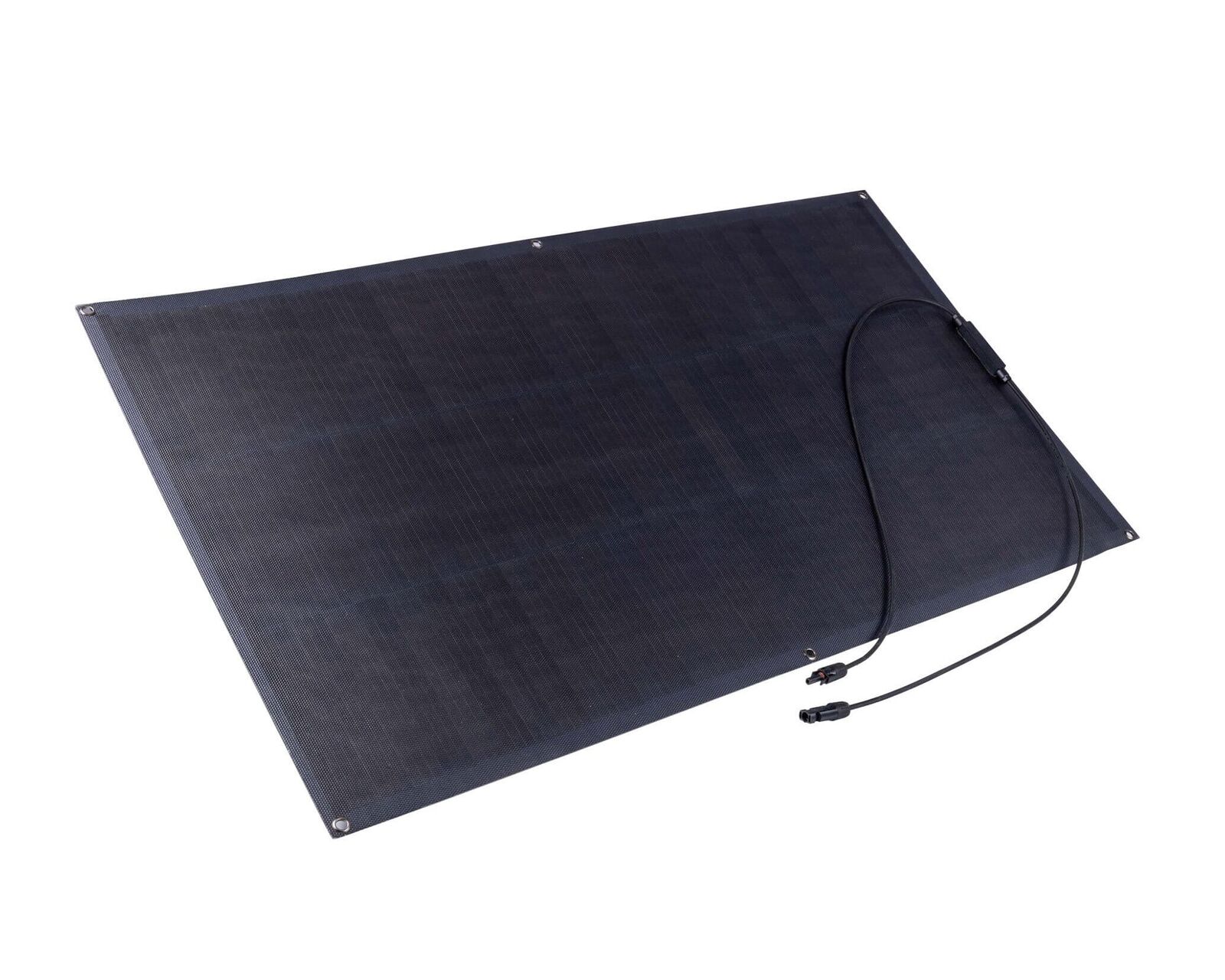

Introducing the Ironman 4×4 110W Semi Flexible Solar Panel with Wired Connectors.
Discover the ultimate eco-friendly power solution for your next camping adventure with Ironman 4×4 Solar Panels. These portable, compact, and efficient panels ensure optimal output and power supply while offering exceptional protection against heat damage.
SHINGLE TECHNOLOGY
The cells are cut into 5 equal parts and connected by sub-strings allowing the cell to bypass shaded areas and maximise power output. Compared to conventional panels, the effect of bad cells is significantly reduced, eliminating the risk of hot spots and permanent damage.
BUILT TO LAST
The premium 7 layer cell construction withstands Australian conditions, offering heat resistance, durability, and increased power supply. Monocrystalline cells are 15-20% more efficient than polycrystalline cells, producing more power in less space. The ETFE layer protects panels from high temperatures, corrosion, and stains.
COMPLETE RANGE
The range features a MPPT charge regulator suitable for use with different battery types including Lithium and AGM, as well as a selection of compatible wiring kits with MC4 and Anderson Plug connections. There is an additional mounting hardware kit suitable for use with rigid panels.
Warranty: 3 Years
Dimensions: 900x633x2mm
Product Weight: 2.15kg
Frame: TPE
Number of Cells per Panel: 68
Cell Coating: EFTE
Construction: Cells Asembled in Shingle Format
UV Stabilised (For Fade): Anit-UV Coating on Face
Rated Maximum Power: 110W
Voltage @PMAX (VPM): 19.05V
Current @PMAX (VPM): 5.77A
Open-Circuit Voltage (VOC): 23V
Short-Circuit Voltage (ISC): 6.15A
Maximum System Voltage: 600 VDC
Maximum Fuse Rating: 20A
Operating Temperature: -40`C to + 85`C
Efficiency: 20.10%
Solar Cell Type: A Grade Monocrystalline Cell – Shingle Assembly
Material: Silicon
Watt Per Cell: 1.54W
Voltage / Amperage Per Cell: 0.56V / 2.75A
Connections: Direct Wired with MC4 Connectors
IP Rating: IP68
SKU | ISOLAR110WF |
Brand | Ironman 4x4 |
Weight | 5.0000kg |
